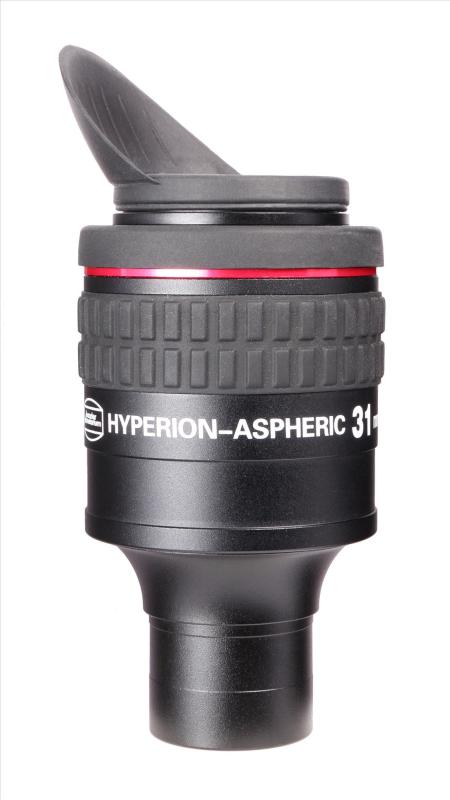

Baader 31mm Hyperion Aspheric 2" Eyepiece

Baader 31mm Hyperion Aspheric 2" Eyepiece – Product description

Baader 31mm Hyperion Aspheric 2" Eyepiece is intended for applications in the Eyepieces 1,25 und 2 category. Fixed focal length of 31mm Hyperion Aspheric 2" Eyepiece, 72° extreme widefield for large field of view High quality Phantom Group Coating for maximum contrast DSLR camera adaptable as projection eyepiece, with system thread SP 54. The following information gives a detailed overview of equipment and use.

Key product details

• Fixed focal length of 31mm Hyperion Aspheric 2" Eyepiece, 72° extreme widefield for large field of view
• High quality Phantom Group Coating for maximum contrast
• DSLR camera adaptable as projection eyepiece, with system thread SP 54
• Aspherical Eyepiece: Normally, near-the-edge, rays are refracted towards the center when passing a lens, as near-axis light beams.
• Therefore, the image field in an uncorrected system can become blurred to the edge.
• The aspherical correction of an optical system, as with these eyepieces, now resolves numerous imaging errors at once.

Aspherical Eyepiece:

Normally, near-the-edge, rays are refracted towards the center when passing a lens, as near-axis light beams. Therefore, the image field in an uncorrected system can become blurred to the edge. The aspherical correction of an optical system, as with these eyepieces, now resolves numerous imaging errors at once. The sharpness is achieved over the entire image field, the distortion is reduced to a minimum and the eyepiece can be made much smaller and lighter.

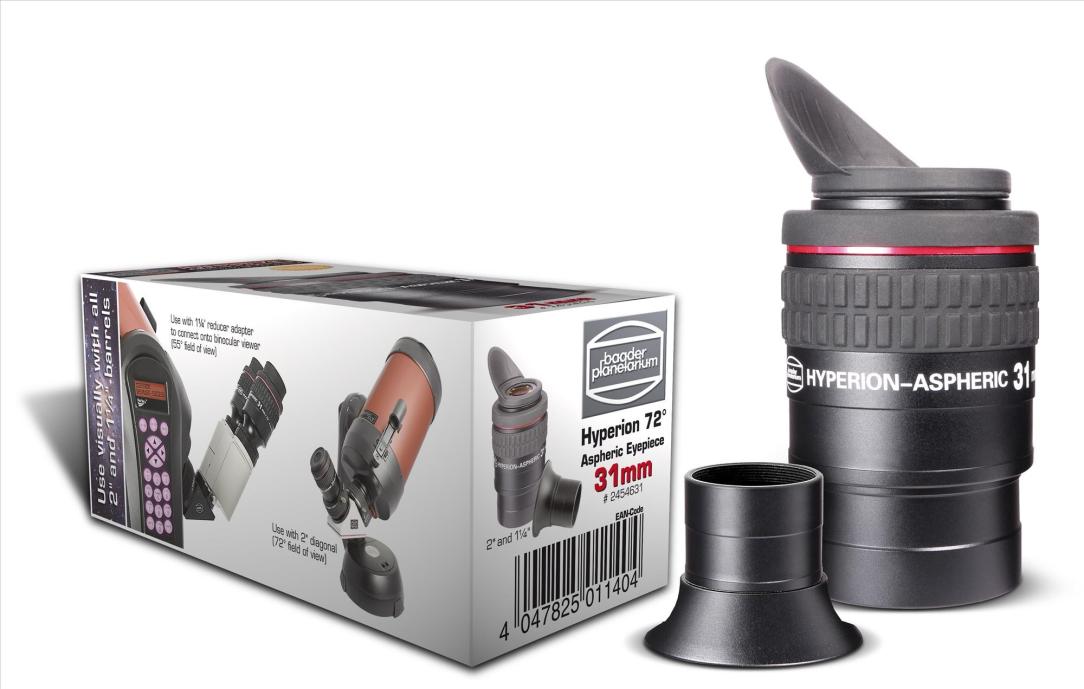

The eyepieces are each delivered with 1¼ "and 2" plug-in sleeves



Application of Baader 2" Aspheric eyepieces

Aspheric 2" eyepieces are launched against the world's most powerful large-field eyepieces and offer compelling advantages: higher star-limit size, unsurpassed color accuracy, low weight and an attractive price.

The aspheric eyepiece design includes aspheric lens surfaces as they are now the standard in the most modern camera lenses to offer the best image performance over the entire image field. The Aspheric eyepiece construction enables for fewer glass surfaces and in combination with the extreme quality of the Phantom Group multi-device. An Aspheric eyepiece delivers a brighter, more contrast-rich image than even expensive expensive wide-angle eyepieces with spherical lenses.

The Aspheric face is 72 degrees only minimally larger than the largest viewing angle of the human eye (68 degrees). In this way, the entire star field can be surveyed at once without having to "roll" with the eyes. Many wide-angle eyepieces offer an impressive 80-degree field of vision and more, but they can not be overlooked at all and the available light is distributed over an area of too large, so that the image brightness (= star limit) and contrast are given away.

The larger the image angle of a wide-angle eyepiece is constructed, the more difficult it becomes for the ocular designer to produce a good insight.

Extreme wide-angle eyepieces, but also wide-angle eyepieces with simple lens construction, often have a very "nervous" insight. If the eye is moved back and forth only slightly, the image field has disappeared immediately. A nervous eyepiece is a frustrating experience, especially for working with students, guests or at the people's day, because the observer obtain a good obervation.

In a direct comparison, all observers find that an Aspheric eyepiece exhibits finer stars and weaker structures in gas nebulies than much more expensive 2" wide angle eyepieces. Technological progress is particularly dramatic here.



Photographic adapter threads for all types of projection photography:

Photographically, all conventional DSLR camera housings can be attached directly behind the eyepiece using the eye-side M43 or the SP 54 system lens. A huge selection of adapter threads and transition rings are available. Thus, the telescopic focal length can be changed almost arbitrarily if small star fields or planetary objects are to be documented with high resolution. A detailed guide is included with each eyepiece.

System suitability for projection photography:

Each Aspheric eyepiece is fitted with screw threads on both sides in order to be able to install it as a projection system in an optical beam path.

On the telescope side there is a 2" SC thread in the eyepiece body which enables the eyepieces to be screwed firmly to the end of the tube of all Schmidt Cassegrain optics without a plug-in sleeve and without a zenith mirror.

Visually, this extremely short attachment enables for a larger true field of view than any wide-angle eyepiece with 2" plug-in sleeve.





Selection note
