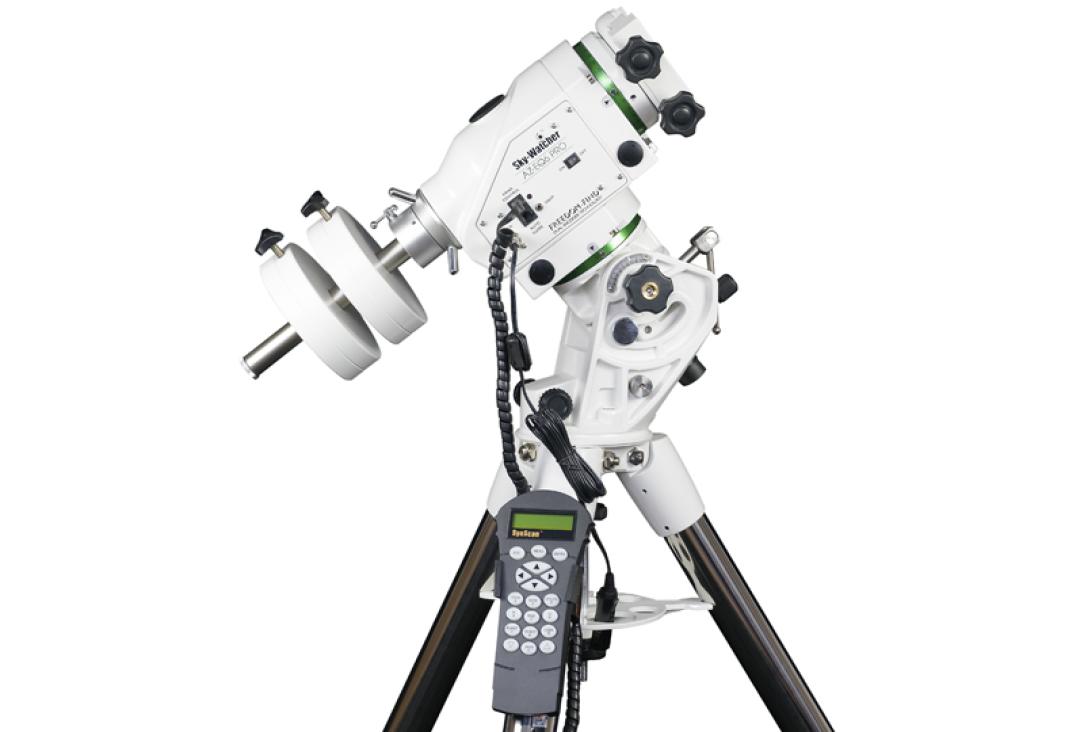

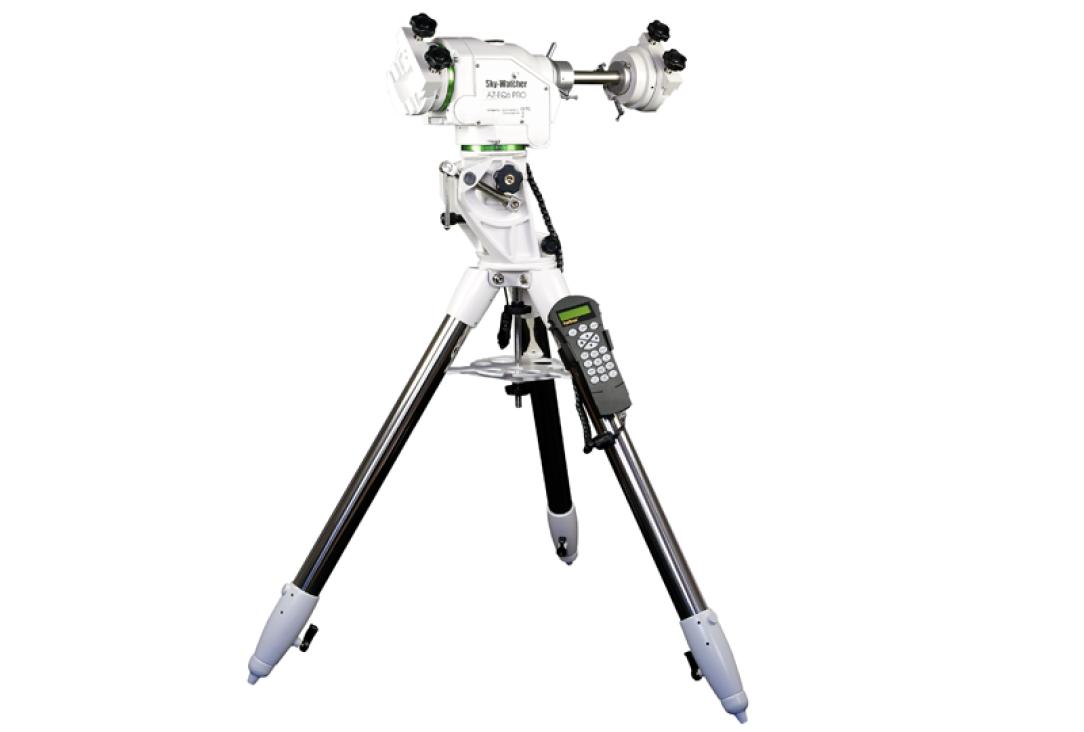

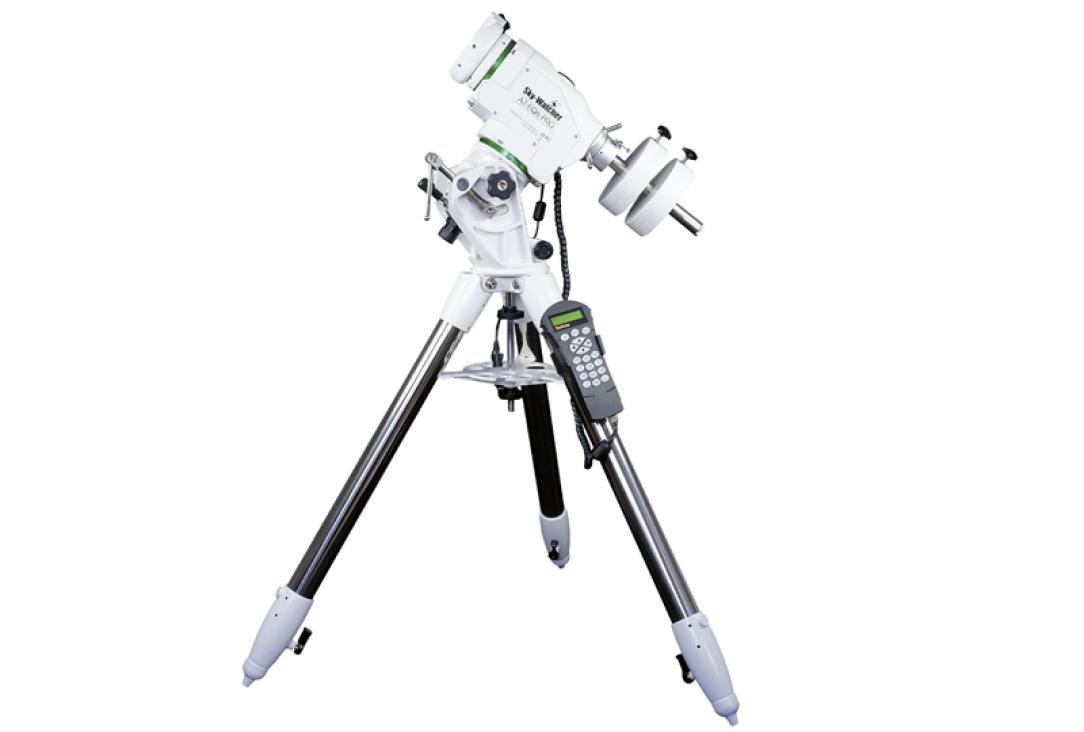

Sky-Watcher AZ-EQ6 GoTo Mount
The Sky-Watcher AZ-EQ6 GoTo Mount is a dual-mode equatorial/alt-az GoTo mount for stable visual observation and, where the configuration allows, astrophotography. Its mechanical design, drive system and connection standard are summarized below so that the mount can be matched to the telescope or optical instrument.
It is suitable for the applications described below. Payload figures are manufacturer values; for imaging, allow additional reserve for the tube, camera, guider, cables and wind load.
Highlights
- Payload: up to 20 kg (without counterweight; Herstellerangabe)
- motorized EQ-/AZ-tracking, PPEC
- Dual-Fit 45/75 mm
- SynScan GoTo, Freedom-Find-Doppelencoder, 10–70° EQ and 0–90° AZ, 2 × 5-kg-counterweight
Technical data
| Mount type: | Dual-mode equatorial/alt-az GoTo mount |
| Payload: | up to 20 kg (without counterweight; Herstellerangabe) |
| Mount weight: | not consistently specified |
| Drive / movement: | motorized EQ-/AZ-tracking, PPEC |
| Saddle / connection: | Dual-Fit 45/75 mm |
| Tripod / base: | 2-Zoll-steel tripod, approx. 7,5 kg |
| Key features: | SynScan GoTo, Freedom-Find-Doppelencoder, 10–70° EQ and 0–90° AZ, 2 × 5-kg-counterweight |
| Package contents: | AZ-EQ6, steel tripod, SynScan-hand controller and counterweights |
Practical setup advice
When choosing a mount, consider focal length, tube length, wind load, camera, guiding equipment and all accessories in addition to the nominal payload. For imaging, staying below the visual maximum generally improves tracking and guiding. A level base and careful balancing also make operation smoother.
Package contents
AZ-EQ6, steel tripod, SynScan-hand controller and counterweights. Check the exact product variant and the current manufacturer specification before ordering.
Related products: Mount accessories · Telescope accessories · Eyepieces
Technical data based on manufacturer and specialist-retailer specifications, checked 22 September 2026. Sky-Watcher AZ-EQ6 official product data.
