TS-Optics Photo Adapter for spotting scopes BW65Z, BW80Z and BW100Z

Adapter for Digiscoping - Photography through TS BW65/80/100 Spotting Scopes

Thanks to better digital cameras, photography becomes is rising strongly. With the CA-Final photography adapter, you can turn your TS spotting scope into a powerful, long focal length telephoto lens for photography. The magnification adjustment of your spotting scope is retained. You can change the effective focal length by turning the zoom eyepiece - similar to a telezoom. With this, you can always find the right image section.


The adaption of your camera could not be easier!

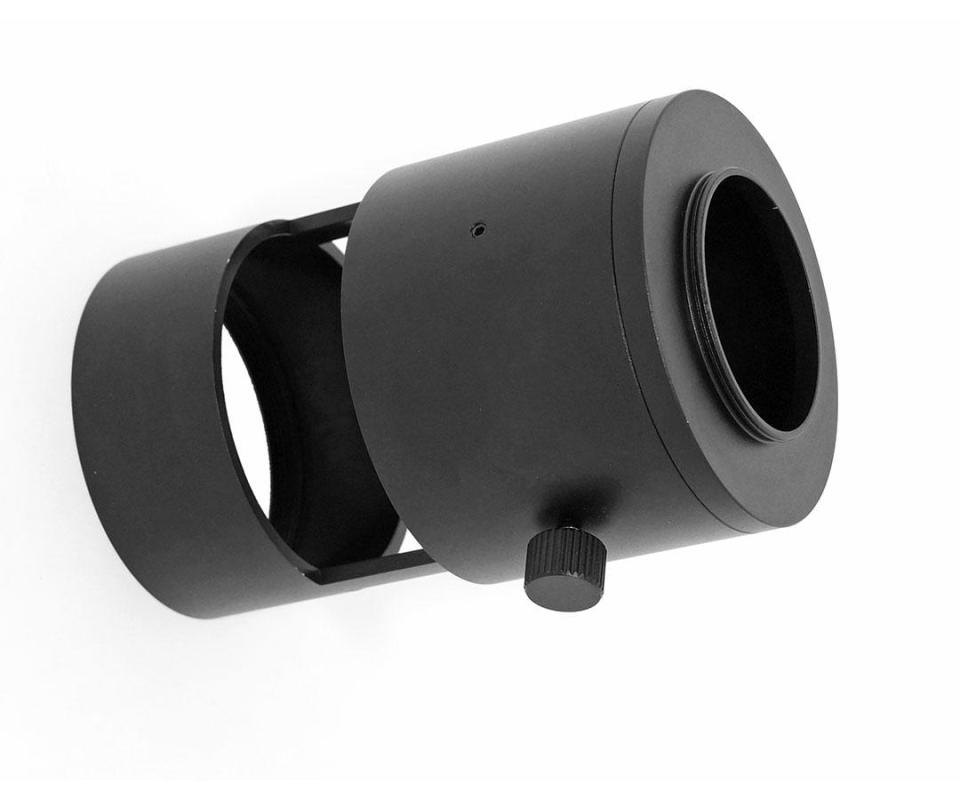

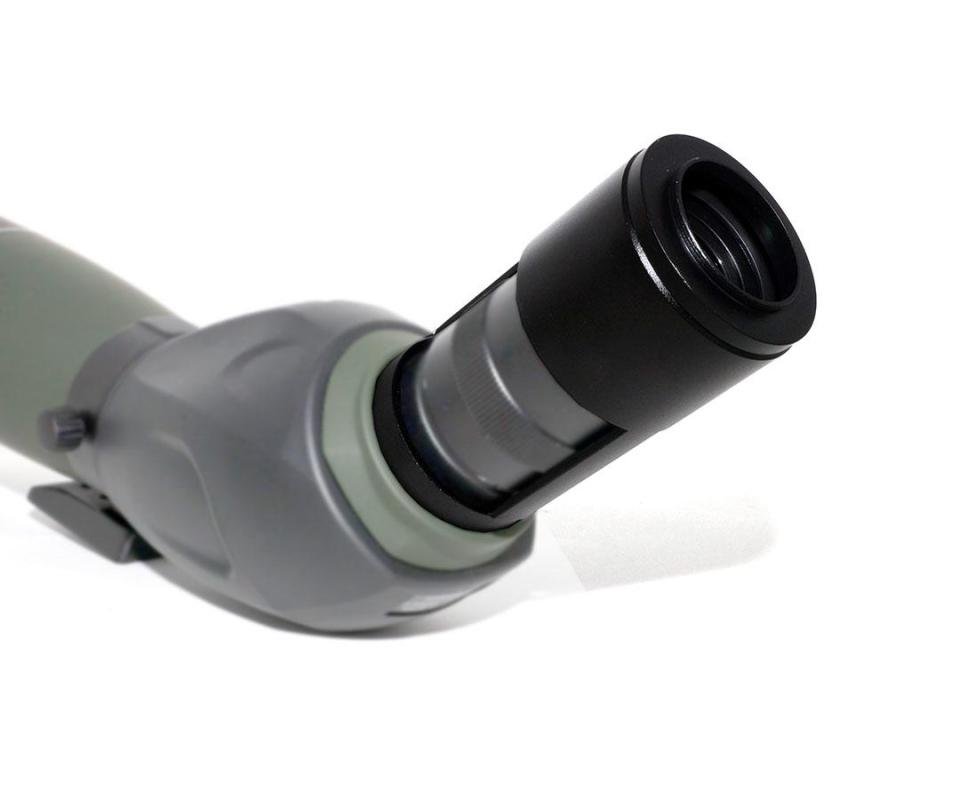

Simply screw the CA-Final camera adapter on the zoom eyepiece. The adaptor easily fits over it and attaches to the thread at the body of the spotting scope. Now there are two threads available at the camera side.

The T2 thread for DSLR and system cameras: The M42x0.75 or T2-thread is the standard thread for all cameras with interchangeable lenses. You can directly attach your camera by an optional T2 adapter which you can find in our accessories recommendations.

The M65 filter thread: You will find this thread if you remove the T2 ring. The adapter M65i-M68a (linked below) enables the connection of adapters with M68 internal threads, which adapt to other threads.



Technical data:


Connection thread to spotting scope:	Special thread
Connection threads to camera:	T2 (M42x0.75) and M65x0.75
Length:	115 mm
