ZWO CAA Camera Angle Adjuster Rotator

ZWO CAA Camera Angle Adjuster Rotator – Product description

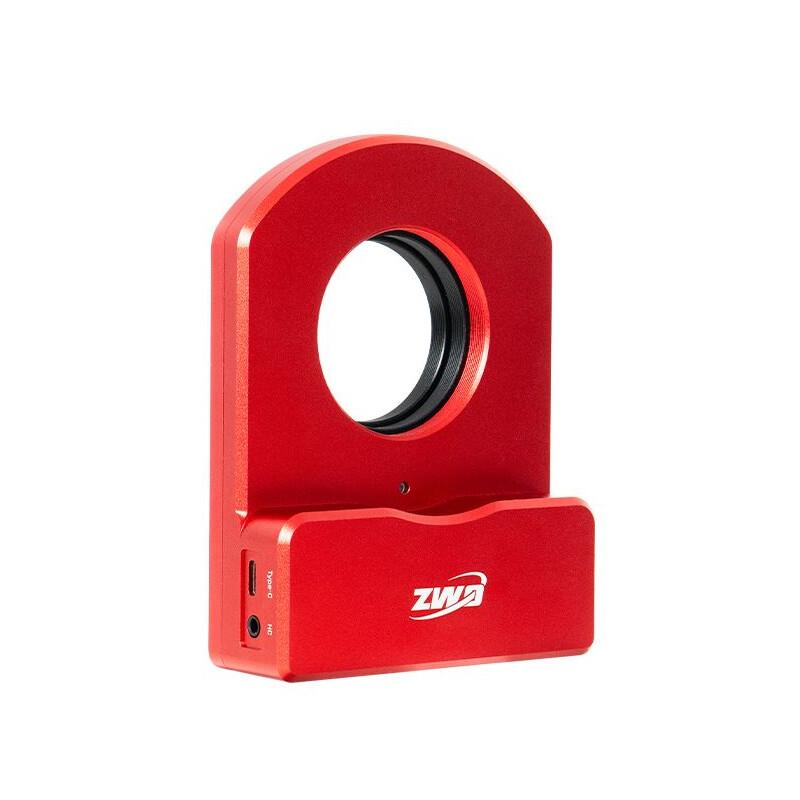

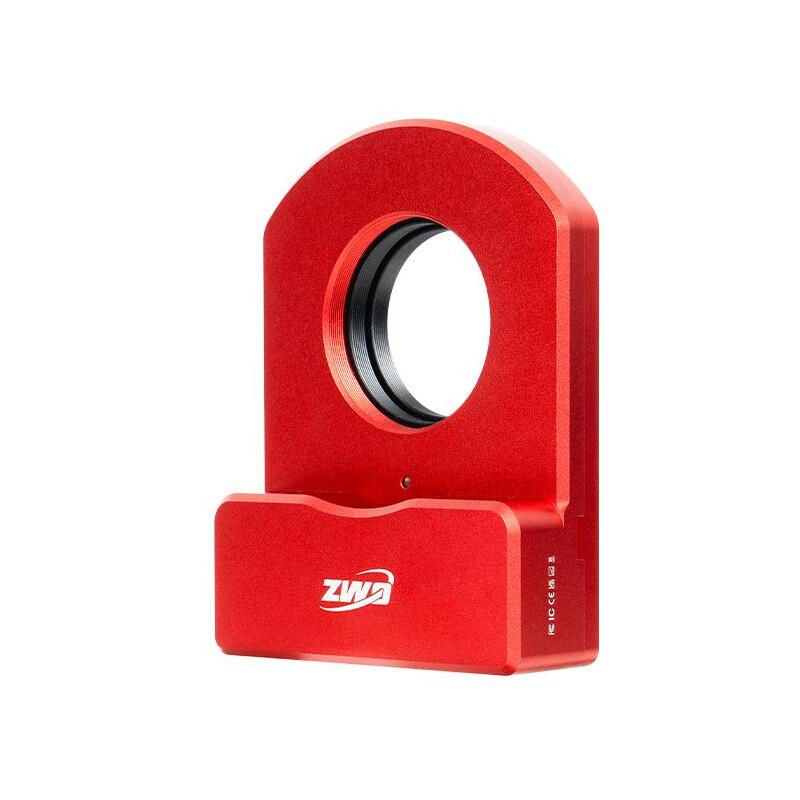

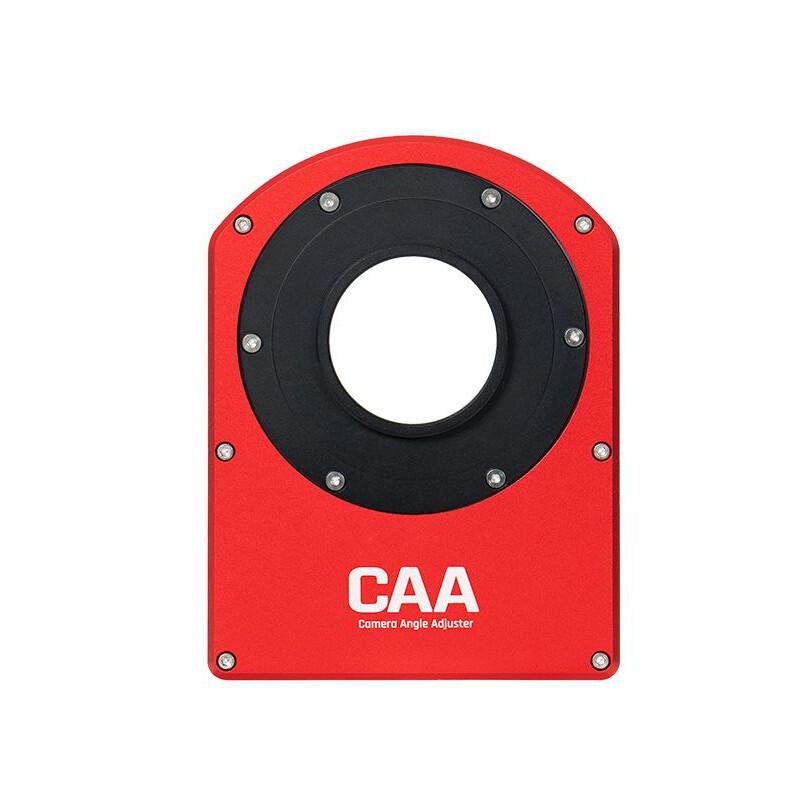

ZWO CAA Camera Angle Adjuster Rotator is intended for applications in the Electronic rotator category. Motorised camera rotator with M54 connections, additional M48 output, only 16.5 mm optical length, 0.02° step resolution and up to 4 kg load capacity. The following information gives a detailed overview of equipment and use.

Key product details

• Remote and observatory astrophotography
• Automated mosaics
• Users wanting repeatable image orientation

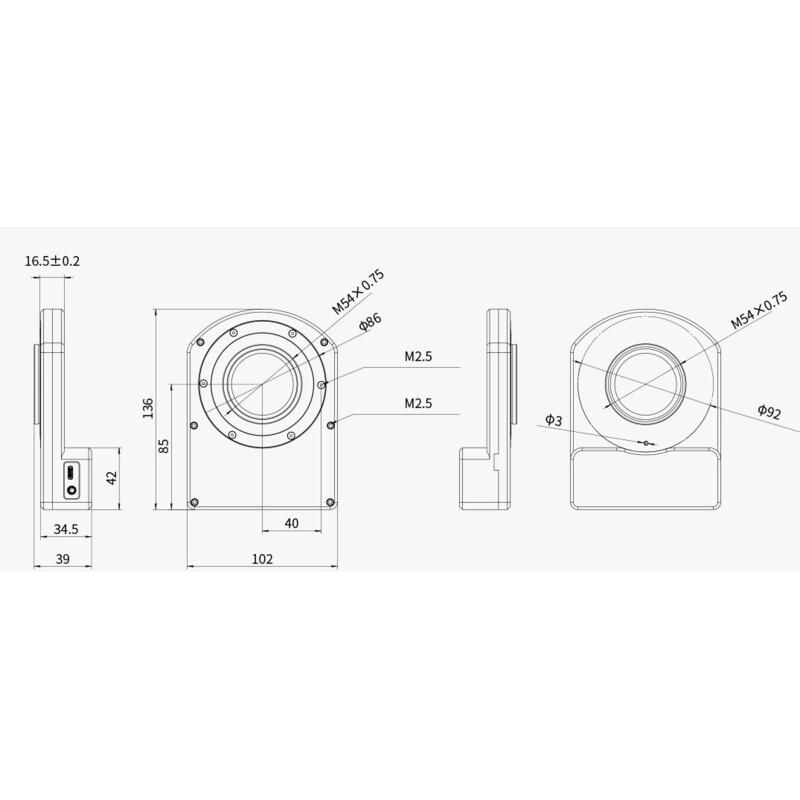

• M54x0.75 telescope-side connection
• M54x0.75 and M48x0.75 camera-side connections
• Approx. 16.5 mm optical length

Product overview

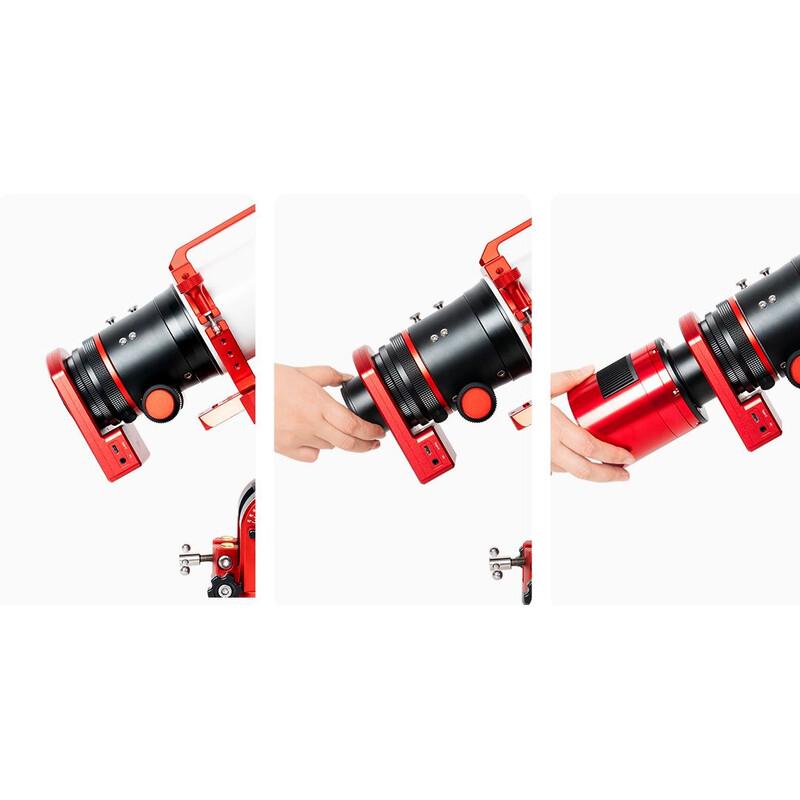

The ZWO CAA automates camera rotation, making framing, mosaics and repeatable sensor angles much easier. In remote setups, it removes the need to loosen and turn the camera manually.

Suitable applications

• Remote and observatory astrophotography
• Automated mosaics
• Users wanting repeatable image orientation

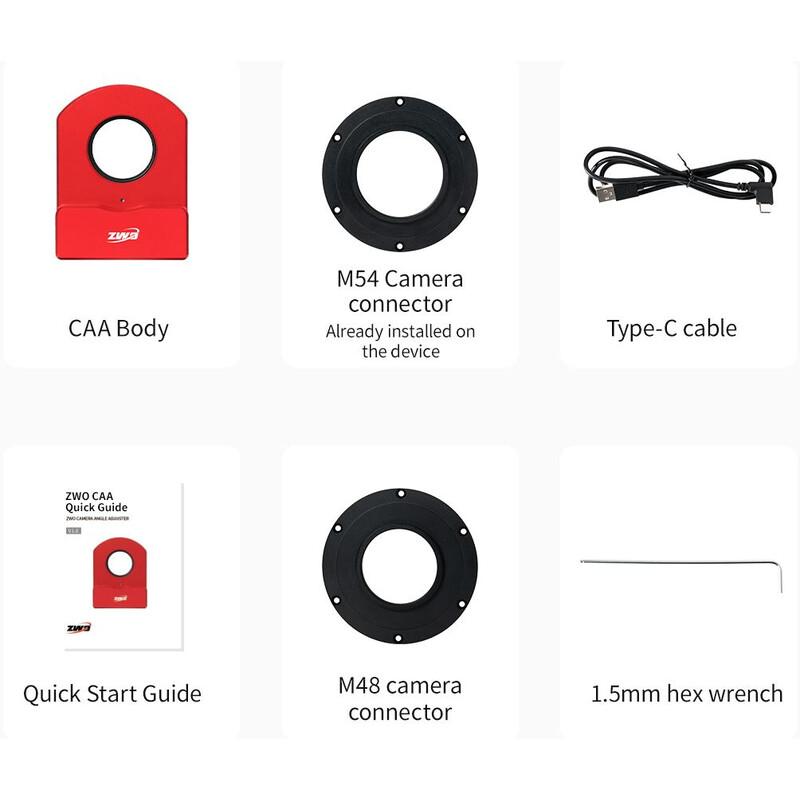

Included equipment

• M54x0.75 telescope-side connection
• M54x0.75 and M48x0.75 camera-side connections
• Approx. 16.5 mm optical length
• Weight approx. 465 g
• Load capacity up to about 4 kg
• Step resolution approx. 0.02°
• Support for ASIAIR, ASIStudio and ASCOM according to product data

Backfocus and cables

A rotator sits directly in the optical train, so its length must be included in the backfocus calculation. Cables also need enough slack to allow rotation.

Practical note

After installation in an automated setup, check travel limits, cable routing and collision clearance before unattended operation.

Selection note
